PR-4G/PR-4GC
If you are interested in this product please CONTACT US
- Manufactured by: Progress
| MODEL | PR-4G/C |
|---|---|
| Motor | 3ϕ 1HP |
| Spindle speed (rpm) | |
| 1 speed motor | 60Hz 60-1500 |
| (standard) | 50Hz 50-1250 |
| 2 speed motor | 60Hz 60-3000 |
| (optional) | 50Hz 50-2500 |
| Spindle taper | MT3 or R8 |
| Spindle stroke | 130mm |
| Swing | 520mm |
| Square table (PR-4G) | 555 × 495mm |
| Cross table (PR-4GC) | 585 × 190mm |
| Longitudinal travel | 340mm |
| Cross travel | 180mm |
| No. of T slots (PR-4G) | 2 |
| No. of T slots (PR-4GC) | 4 |
| T slot size (PR-4G) | 16 × 26mm |
| T slot size (PR-4GC) | 14 × 24mm |
| Column diameter | ø115mm |

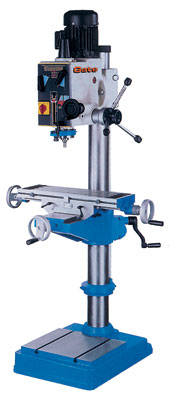

| PR-4GC – Cross table | |
| PR-4G – Square table | |
