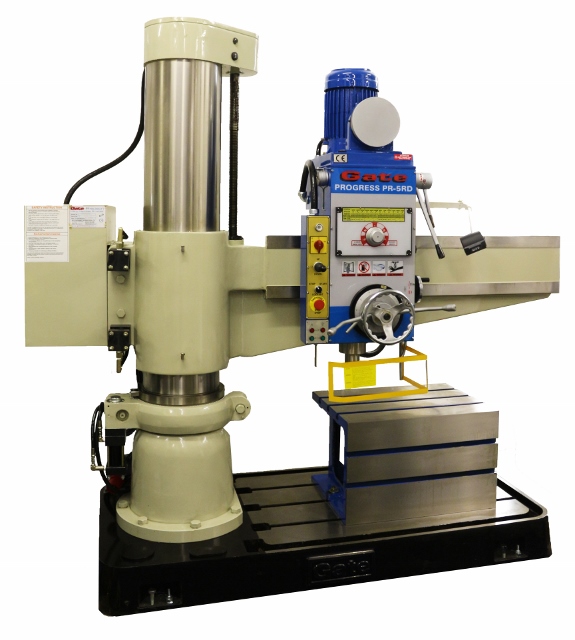

PR-5RD / PR-6RD
If you are interested in this product please CONTACT US
- Manufactured by: Progress
| MODEL | PR-5RD / 6RD |
|---|---|
| Spindle stroke | 250mm |
| Taper | MT4 / MT5 |
| Spindle speed | 88 – 1500 / 37 – 1300rpm |
| Spindle feeds | 0.05, 0.09, 0.15mm/rev / 0.05-0.30mm/rev (6 steps) |
| Column diameter | 300mm |
| Max. distance, column surface spindle centre | 1240mm |
| Min. distance, column surface spindle centre | 320mm |
| Horizontal travel of headstock | 915 / 920mm |
| Max. distance, base to spindle | 1210mm |
| Min. distance, base to spindle | 330 / 290mm |
| Overall height of column | 2160mm |
| Machine height from floor | 2585mm |
| Dimensions of base (L×W×H) | 1800/1840 × 800 × 170mm |
| Effective area of box table (L×W×H) | 650 × 500 × 410mm |
| Spindle drive motor | 3HP / 3.75KW |
| Arm elevation motor | 2HP / 1.5KW |
| Coolant pump | 1⁄8HP |
| Oil motor | 1HP (PR-5RD only)/0.75KW (PR-6RD only) |
