  • Manufactured by: Progress

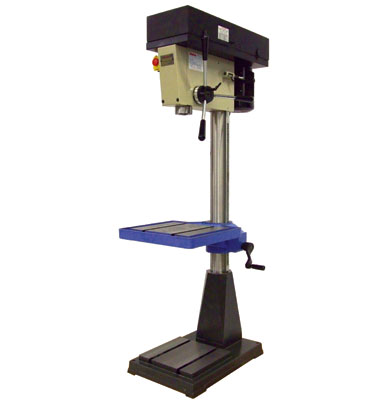

MODEL PR-2S
Motor 3ø 1HP
Speeds 12
Spindle speed (rpm)
1 Speed Motor 60Hz 110-2580
Standard 50Hz 90-2150
Spindle Taper MT3
Sprindle Travel 120mm
Quill diameter 55mm
Swing 500mm
Spindle nose to table 670mm
Spindle nose to base 1225mm
Column diameter ø100mm
Table work surface 420 × 470mm
Number of T slots 2
T slot size 16 × 26mm
Tapping 12mm (option)
Drilling capacity 28mm

Description

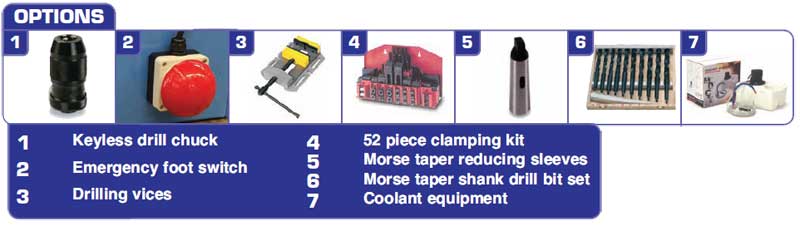

page-6-7-options
