MODEL MSG-450
General Capacity
Max. Travel (Cross × Longitudinal) 160 × 475mm
Spindle Center Height from Table 400mm
Grinding Surface of Table 150 × 450mm
Longitudinal Movement
Hydraulic Table Speed (60Hz) Manual
Cross Movement
Intermittent Cross Feed (Electro-Mechanical) Approx. Manual
Continuous Cross Feed (Electro-Mechanical) Approx. Manual

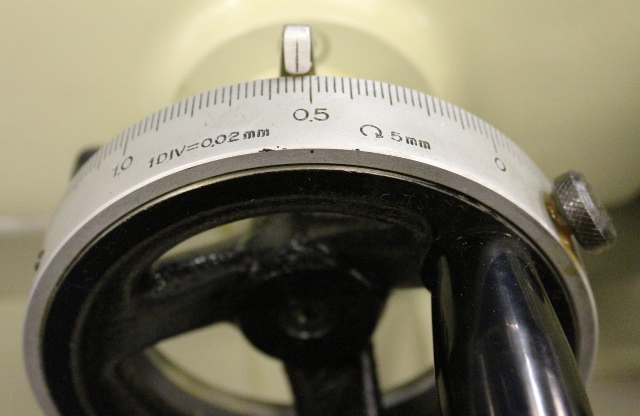

Hand Feed Per Revolution 5mm
Hand Feed Per Division 0.02mm
Vertical Downfeed
Rapid Traverse Approx. (Option) 50Hz Manual
Hand Feed Per Revolution 1mm
Hand Feed Per Division 0.005mm

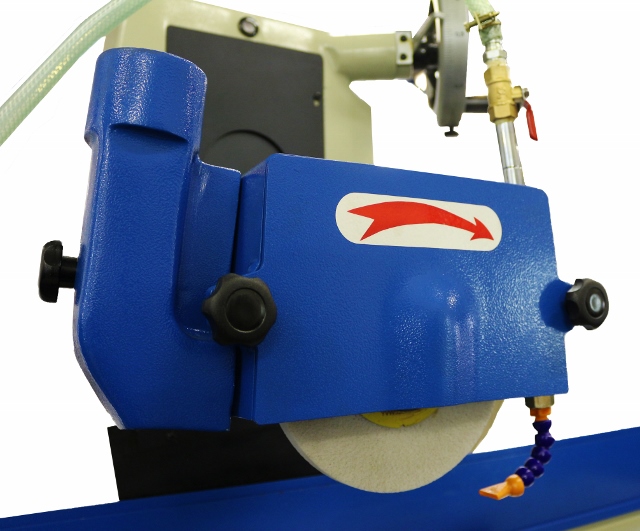

Grinding Wheel
Dimension (O.D × W × I.D) 180×13(19)×31.75mm
Spindle Speed 50/60Hz 3000/ 3600rpm
Motor
Spindle Motor 1.1 (1.5)KW /1 .5(2)HP
Hydraulic Motor Manual
