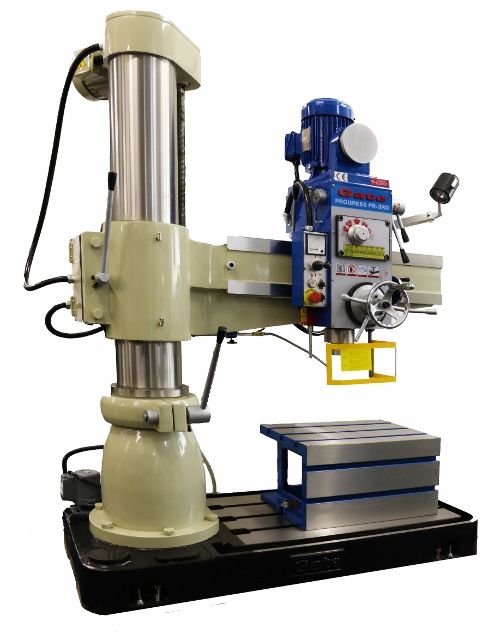

PR-2RD / PR-3RD
If you are interested in this product please CONTACT US
- Manufactured by: Progress
- Shipping Weight:
| MODEL | PR-2RD / 3RD |
|---|---|
| Spindle stroke | 200mm |
| Taper | MT4 |
| Spindle speed | 88 – 1500rpm |
| Spindle feeds | 0.05, 0.09, 0.15mm/rev |
| Column diameter | 210mm |
| Max. distance, column surface spindle centre | 775 / 920mm |
| Max. distance, column surface spindle centre | 290mm |
| Horizontal travel of headstock | 500 / 630mm |
| Max. distance, base to spindle | 1110mm |
| Min. distance, base to spindle | 282mm |
| Overall height of column | 1850mm |
| Machine height from floor | 2175mm |
| Dimensions of base (L×W×H) | 1280 / 1435 × 640 × 150mm |

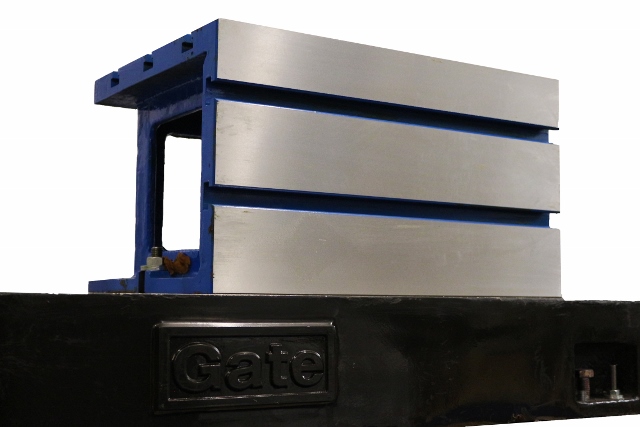

| Effective area of box table (L×W×H) | 550 × 405 × 315mm |
| Spindle drive motor | 2 HP |
| Arm elevation motor | 1 HP |
| Coolant pump (HP) | 1⁄8HP |
