ECG-350C

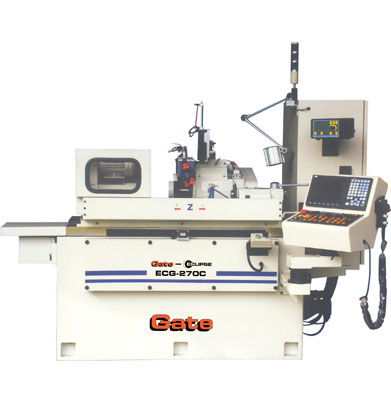

The new Gate – Eclipse CNC Cylindrical Grinding machines come in two sizes – 270mmØ & 350mmØ with 600mm between centres. With easy to program controls these machines are ideal for all small to medium sized grinding applications.
They are precise and accurate and are ideally suited for aerospace, medical and high accuracy ground parts production. A wide range of accessories and options make these machines extremely versatile. All Gate machines are supplied with a 2 year warranty as standard.
Ideal for:
[lists bullet=”square” type=”style1″]
- Aerospace
- Medical
- High accuracy components manufacture
[/lists]If you are interested in this product please CONTACT US

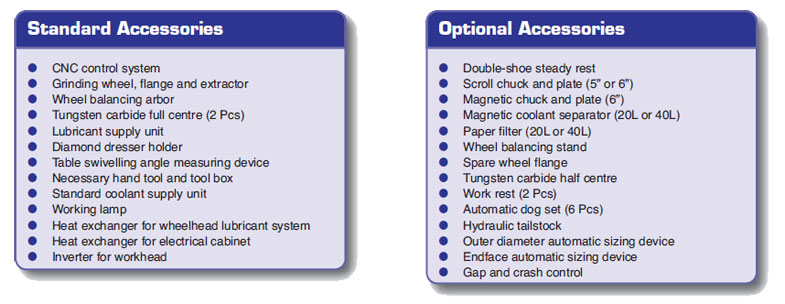

| MODEL | ECGL-350C |
|---|---|
| Capacity | |
| Swing over table | 350mm |
| Distance between centres | 600mm |
| Max. workpiece weight – centre work | 60Kg |
| – centre work | 20Kg |
| Wheelhead and feed | |
| Grinding wheel dimension OD × Width × ID | 405 × 32-50 × 152.4mm |
| Wheel speed | 1850rpm |
| Max. wheel circumferential speed | 2000mm/min |
| Traverse length | 250mm |
| Swivel angle | + / – 15° + / – 15° |
| Manual in feed (Ø) | 0.001, 0.01, 0.1mm |
| Table | |
| Traverse length | 700mm |
| Swivel angle – towards operator | 6° |
| – towards operator | 9° |
| Manual infeed (Ø) | 0.001, 0.01, 0.1mm |
| Workhead | |
| Workhead type | Dead / Live Centre |
| Work spindle speed | 30-360mm |
| Taper no. MT No.4 | MT No.4 |
| Diameter of through hole | 25mm |
| Tailstock | |
| Taper no. | MT No.4 |
| Spindle stroke | 32mm |
| Motor | |
| Wheelhead infeed servo motor | 1.5KW |
| Table infeed servo motor | 1.5KW |
| Wheelhead spindle | 3.75KW (5HP) |
| Workhead spindle | 0.4KW (½HP) |
| Hydraulic pump | 0.75KW (1HP) |
| Wheelhead lubrication pump | 0.1KW (1⁄8HP) |
| Coolant pump | 0.2KW (¼HP) |
| Tank capacity | |
| Wheelhead lubrication tank | 30L |
| Hydraulic tank | 60L |
| Coolant tank | 80L |
| Floor space (Length × Width × Height) | 2700×1520×1650mm |
| Net weight (approximate) | 2200Kg |
