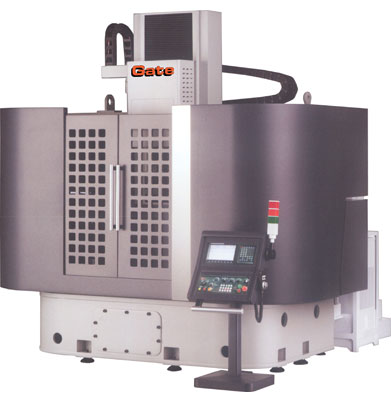

ECG-1000R

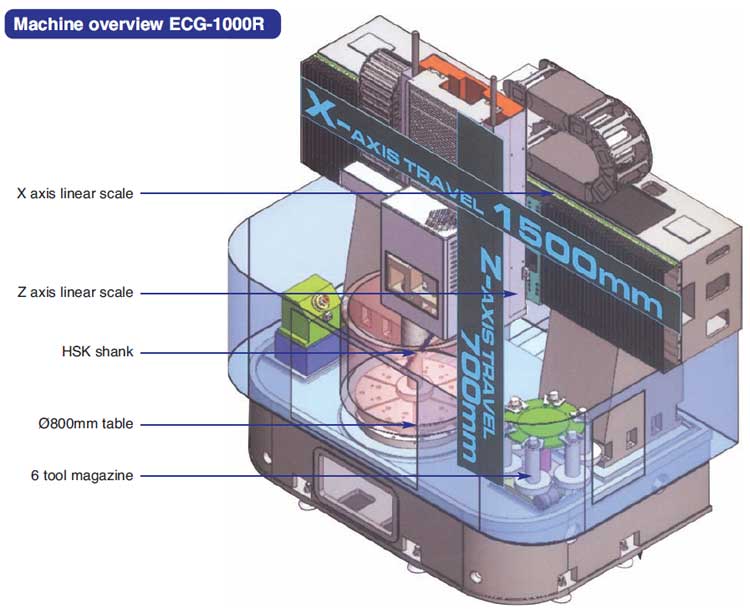

The new Gate – Eclipse CNC Rotary Table Grinder has a heavy duty double column that provides greater rigidity and stability to deliver high precision grinding with superior surface finish. The high accuracy rotary table can take 1000Kg table load as standard, and 3000Kg with optional static hydraulic pressure table. The 6 position ATC makes it a multifunction CNC grinder. All Gate machines are supplied with a 2 year warranty as standard.

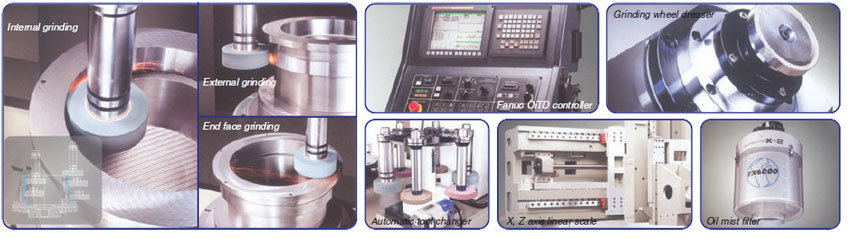

High accuracy CNC grinding machine ideal for grinding:
[lists bullet=”square” type=”style1″]
- ID, OD and end face of bearings
- Cams
- Turbine housings
- Circular cutting knives
- Linear guideways
- Brake discs
- Rings
[/lists]If you are interested in this product please CONTACT US
MODEL | ECG-1000R |
---|---|
Capacity | |
Range of grinding – inside diameter | Ø100mm – 800mm |
– outside diameter | max Ø1000mm |
Working table | |
Diameter x | Ø800mm |
RPM | 10-160rpm |
Load | 1000Kg |
Height (between table & spindle) | 700mm |
Spindle | |
Power | 11KW / 15HP (15KW / 20HP option) |
RPM | 1500-7000rpm (DN<600,000) |
Taper bore | HSK100 |
Wheel | |
Diameter | Ø100-250mm |
X axis | |
Travel | 1300mm |
Speed | 0-10,000mm/min |
Resolution | 0.0001mm |
Z axis | |
Travel | 700mm |
Speed | 0-8,000mm/min |
Resolution | 0.0001mm |
Controller | Fanuc |
Coolant tank | 360L |
