VMC-800M

SKU: VMC-800M.


VMC-800M Compact Vertical Machining Centre

Premium compact vertical machining centre affordably priced

The NEW – Gate – Eclipse VMC-800M Linear Guideway VMC is designed and built to meet the ever- increasing demands for powerful and reliable machines with high efficiency and Highly accurate machine performance.

The Gate-Eclipse M Series uses roller type linear guideways, a high-precision main spindle with thermal expansion stability and a robust and compact structural design with high durability. All our machining centres come with a 2 year warranty as standard.

  • Gross Weight: 6250Kg
  • Dimensions: 2652x22560x2557mm

If you are interested in this product please CONTACT US







MODELVMC-800M
Table
Table size 900 × 520mm
Table Loading 450Kg
Travel
X axis 800mm
Y axis 500mm
Z axis 500mm
Spindle
Taper ISO 40
Spindle speed Belt Drive 10,000rpm (12,000 & 15,000 In-Line Spindles options available)
Ballscrew

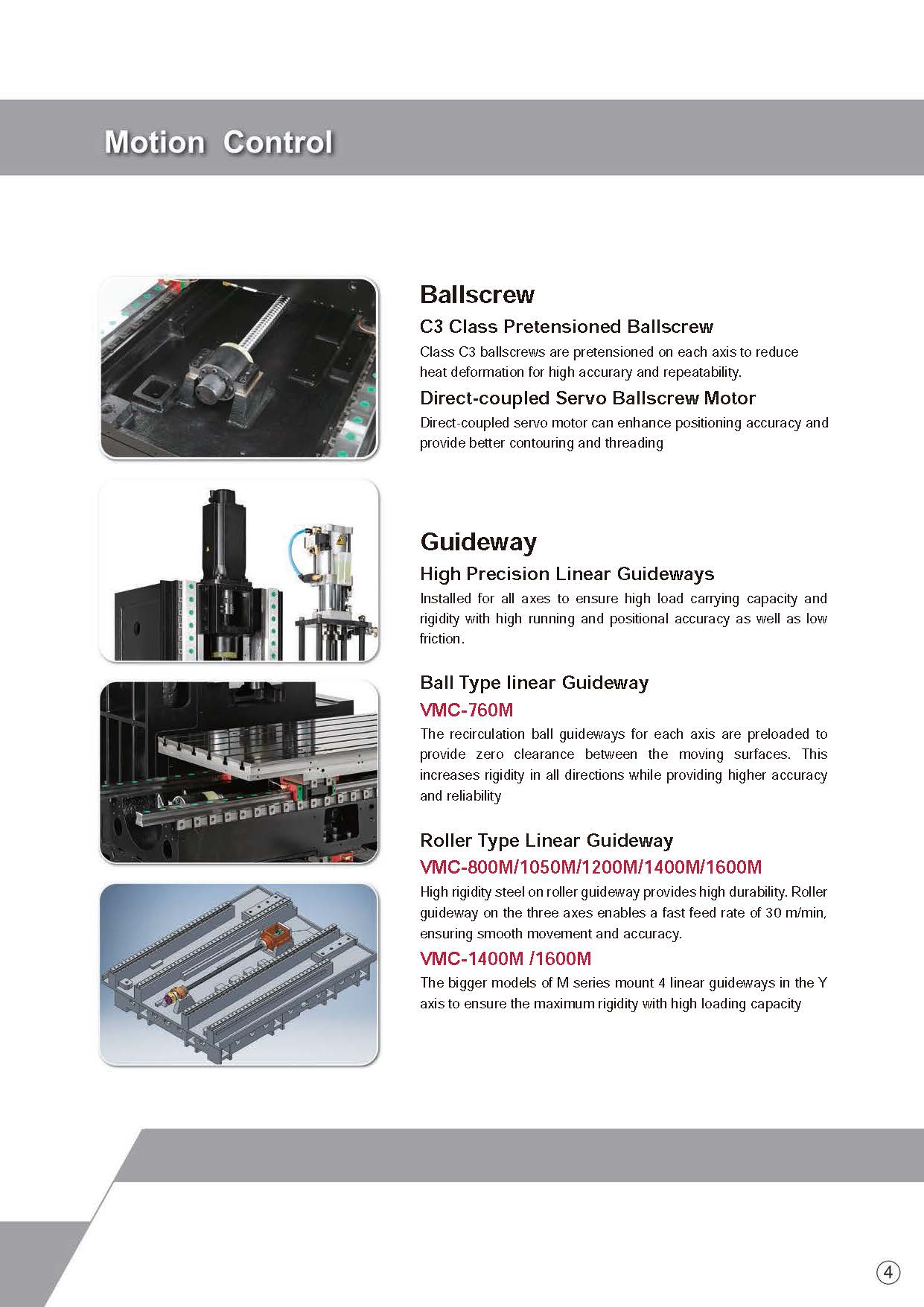

Linear way (Roller) – X/Y/Z axes 35mm
Motor

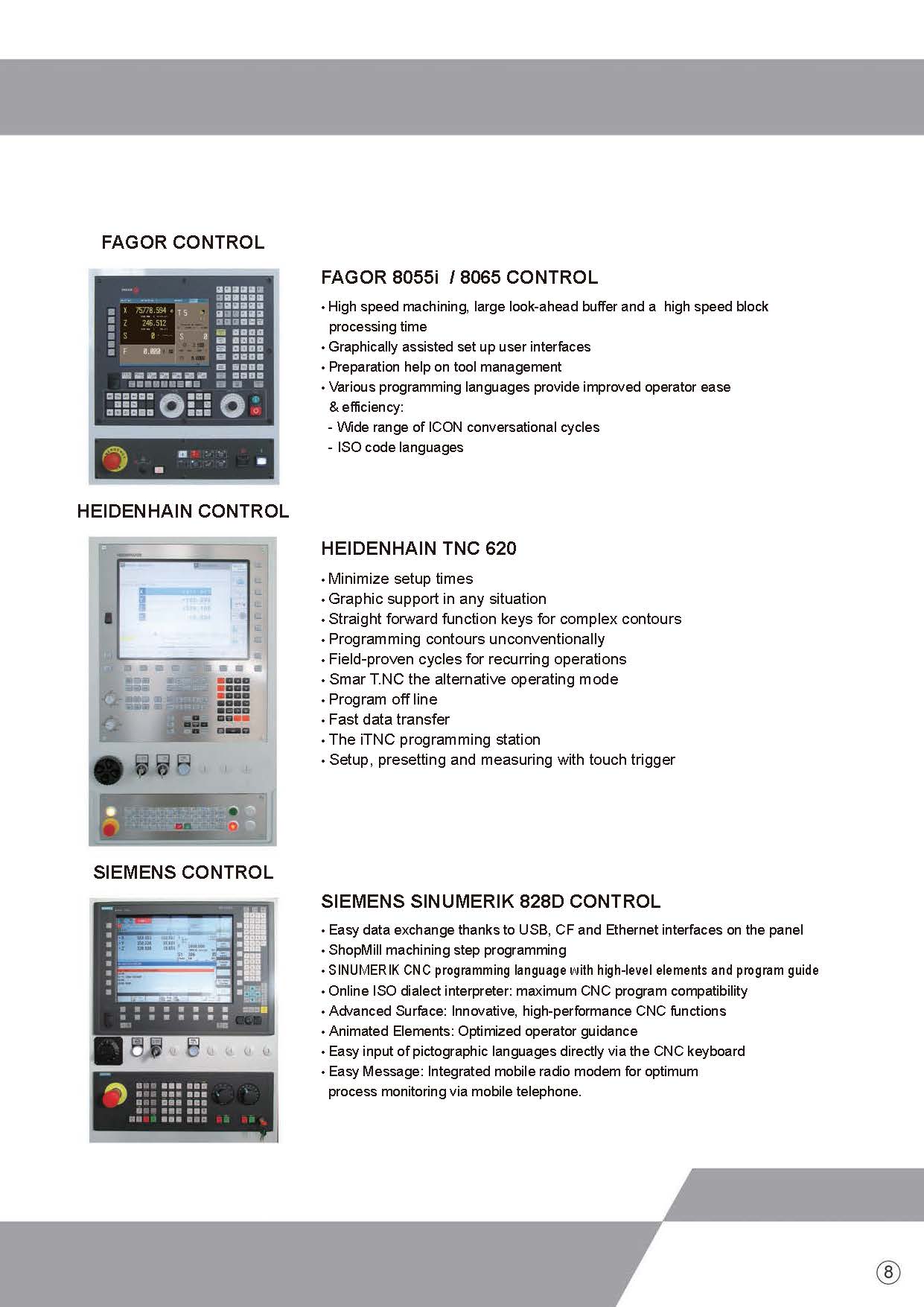

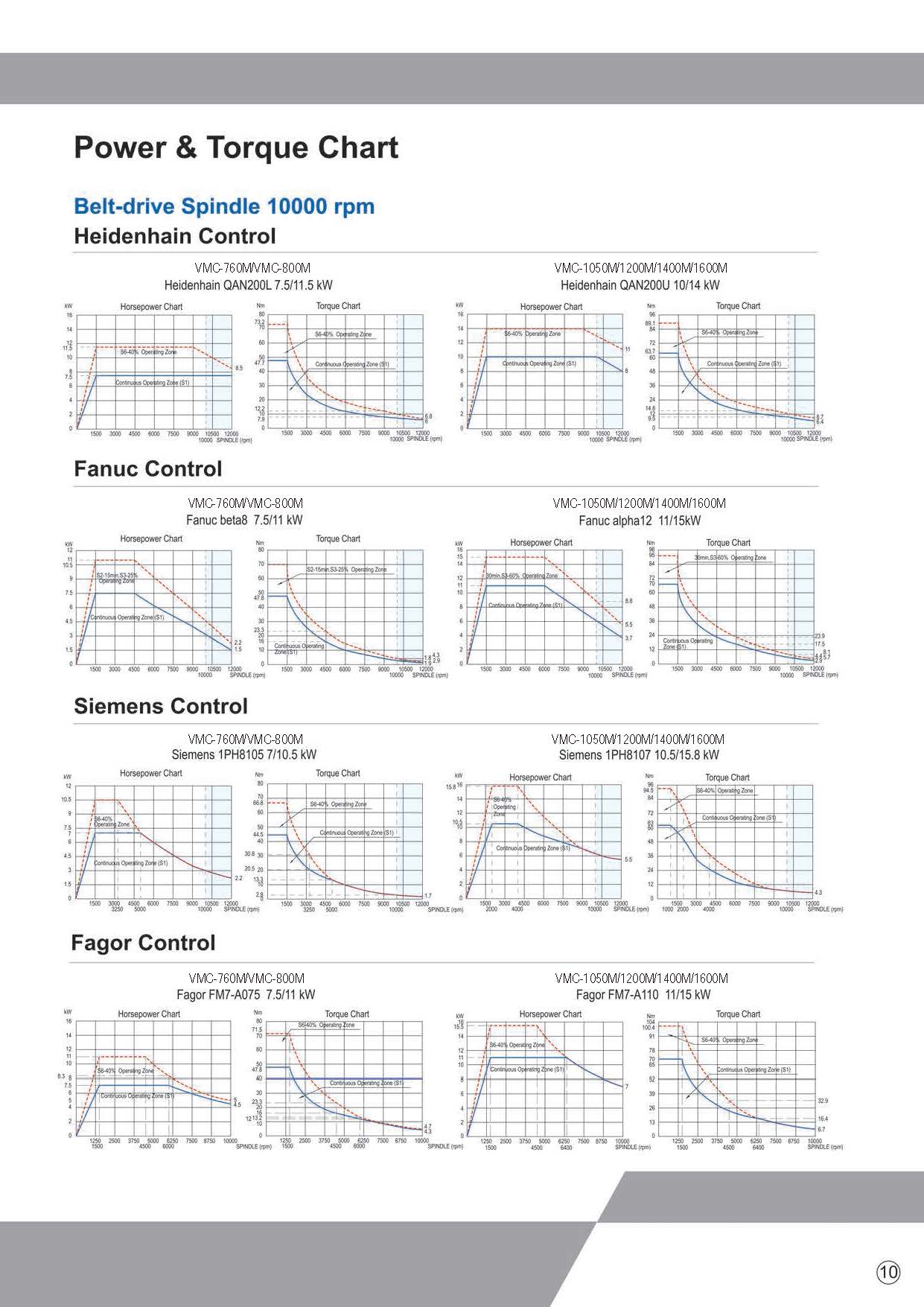

Spindle STD Belt Drive 7.5/11.5KW (Heidenhain) / Belt Drive 7.5/11KW (Fagor, Fanuc, Mitsubishi) / Belt Drive 7/10.5KW (Siemens) with 10,000rpm
Spindle (opt.) In-Line Spindle 7/10.5KW (Heidenhain & Siemens) / In-Line Spindle 7.5/11KW (Fagor, Fanuc, Mitsubishi) with 12,000rpm
Spindle (opt.) In-Line Spindle 7/10.5KW (Heidenhain & Siemens) / In-Line Spindle 7.5/11KW (Fagor, Fanuc, Mitsubishi) with 15,000rpm
ATC – Random Arm Type
Pocket 24 STD (30 Opt.)
Tool taper BT / CAT / Din 40
Max. tool weight 7Kg
Max. tool diameter 75mm (125mm every next tool)
Max. tool Length 300mm
Performance
Rapid traverse (X/Y/Z) 30m/min
Positioning accuracy +/- 0.01 / 300mm
Repeatability +/- 0.01mm
