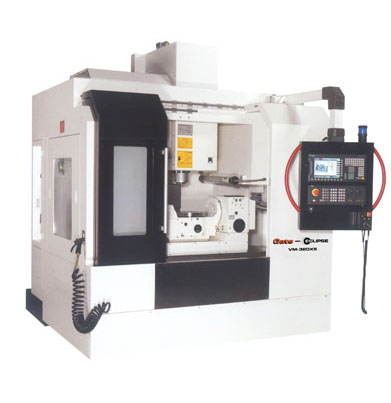

VM-320X5 5 Axis Vertical Machining Centre
Gate – Eclipse VM-320X5 announces the arrival of the next generation of 5 axis vertical machining centres. The combination of high spindle speeds, rapid machining rates, high accuracy and a 320mm trunnion table makes this machine one of the best in its class. All Gate machines are supplied with a 2 year warranty as standard.
If you are interested in this product please CONTACT US
| MODEL | VM-320X5 |
|---|---|
| High dynamic table | |
| Rotary table top diameter | 320mm |
| Table height | 1160mm |
| Tilting axis A | +120° / -30° |
| Rotary axis C | 360° |
| T-slots (number × width × pitch) | 12H7mm |
| Max. weight on table | 100Kg |
| Rotate on driving system | Worm-gear driven |
| Linear travels | |
| X axis | 400mm |
| Y axis | 560mm |
| Z axis | 400mm |
| Spindle | |
| Spindle taper | ISO40 |
| Tooling available | BT40/DIN69871/CAT40 |
| Spindle speed – direct drive | 12000rpm (std.) / 15000rpm (opt.) |
| Spindle speed – built-in | 18000rpm / 24000rpm (opt.) |
| Spindle motor output S1-S6 – in-line | 10KW / 14KW (Heidenhain) |
| Spindle motor output S1-S6 – motorised | 20KW / 25KW |
| Spindle centre to Z-axis way cover | 595mm |
| Distance from spindle nose to rotary table clamping surface | 100-500mm |
| Transmission | |
| X axis Ballscrew | ø40×P16; C3 |
| X axis Transmission | Direct |
| Y axis Ballscrew | ø40×P16; C3 |
| Y axis Transmission | Direct |
| Z axis Ballscrew | ø40×P16; C3 |
| Z axis Transmission | Direct |
| Guide way | |
| X guide way X-axis linear guide type | 35 (roller) |
| X guide way X guide way distance | 360mm |
| Y guide way Y-axis linear guide type | 35 (roller) |
| Y guide way Y-axis guideway distance | 700mm |
| Z guide way Z-axis linear guide type | 35 (roller) |
| Z guide way Z guideway distance | 400mm |
| Tool magazine | |
| Tool change mode | Arm |
| Magazine capacity | 24 (std.) / 32 (opt.) |
| Tool shank | BT/DIN/CAT#40 |
| Max. tool length | 245mm |
| Max. tool diameter | 80mm |
| Max. tool diameter – adjacent stations empty | 130mm |
| Max. tool weight | 8Kg |
| Change time (T-T) | 2 seconds |
| Feed rate | |
| Rapid traverse X/Y/Z | 48m/min |
| Max. speed – axis A | 25rpm |
| Max. speed – axis C | 25rpm |
| Acceleration X/Y/Z | 6 ms-2 |
| Accuracy- VDI/DGQ 3441 standard | |
| Measuring system | direct |
| Repeatability | +/-0.005/300mm |
| Positioning accuracy | 0.005mm |
| A-axis indexing and repeatability accuracy | 60/8 sec. |
| C-axis indexing and repeatability accuracy | 20/4 sec. |
| Pneumatic system | |
| Air operating pressure | 6 bar |
| Tool cooling system | |
| Max. tank capacity | 260L |
| Machine data | |
| Machine dimension (with chip conveyor) L×W×H | 3110 × 2990 × 2960mm |
| Machine dimension (without chip conveyor) L×W×H | 2254 × 2990 × 2960mm |
| Weight | 5000Kg |
| Floor space (L × W × H) | 3110 × 4000 × 3000mm |
