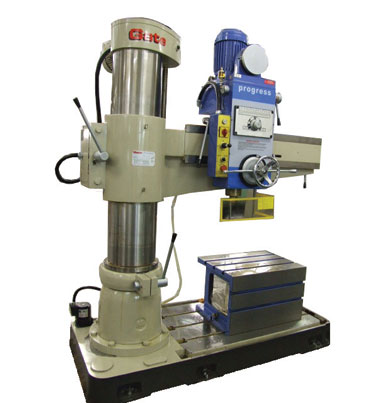

PR-4RD
If you are interested in this product please CONTACT US
- Manufactured by: Progress
- Shipping Weight:
| MODEL | PR-4RD |
|---|---|
| Spindle stroke | 250 |
| Taper | MT4 |
| Spindle speed | 44 – 1500rpm |
| Spindle feeds | 0.05, 0.09, 0.15mm/rev |
| Column diameter | 300mm |
| Max. distance, column surface spindle centre | 1145mm |
| Min. distance, column surface spindle centre | 330mm |
| Horizontal travel of headstock | 810mm |
| Max. distance, base to spindle | 1210mm |
| Min. distance, base to spindle | 290mm |
| Overall height of column | 2160mm |
| Machine height from floor | 2585mm |
| Dimensions of base (L×W×H) | 1800 × 800 × 170mm |
| Effective area of box table (L×W×H) | 650 × 500 × 410mm |
| Spindle drive motor | 3HP |
| Arm elevation motor | 2HP |
| Coolant pump | 1⁄8HP |
