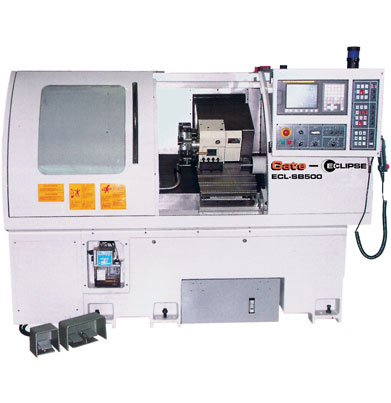

ECL-SB500

High precision production type CNC lathe packed with standard features. Fitted with industry standard Fanuc controls and a wide range of options to support your particular requirements. All Gate machines come with a 2 year warranty as standard.

If you are interested in this product please CONTACT US

Casting

  • One piece Meehanite casting,
    strategically ribbed to provide superior
    rigidity
  • 3 degree 1650Kg base offers extra
    cutting diameter
  • Designed for easier chip flow
Spindle

  • Heavy-duty spindle
  • Supported by 4 angular bearing

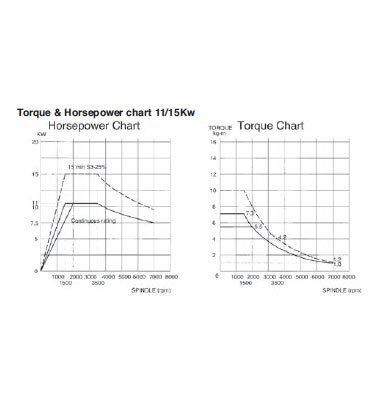

  • 11Kw powerful spindle drive
Hydraulic Chuck

  • Hydraulic 3 Jaw chuck with hard and
    soft jaws
Turret

  • 8 station bi-directional
  • 0.79 seconds indexing time
  • Hydraulic operation
  • Through tool holder coolant
  • Choice of regular or VDI-30 top plate
  • Live tooling/C-axis (option)
Tool Touch Probe (options)

  • Manual tool touch probe
  • Automatic tool touch probe provides
    quick set up and easy use

Description

ECL-SB500
