ECG-270C


education_logo

The new Gate – Eclipse CNC Cylindrical Grinding machines come in two sizes – 270mmØ & 350mmØ with 600mm between centres. With easy to program controls these machines are ideal for all small to medium sized grinding applications.
They are precise and accurate and are ideally suited for aerospace, medical and high accuracy ground parts production. A wide range of accessories and options make these machines extremely versatile. All Gate machines are supplied with a 2 year warranty as standard.

Ideal for:
  • Aerospace
  • Medical
  • High accuracy components manufacture

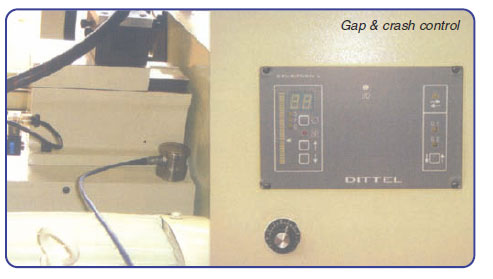

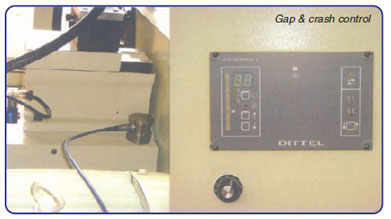

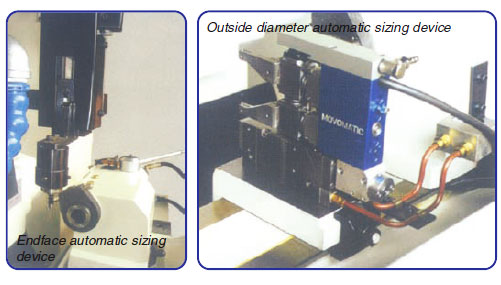

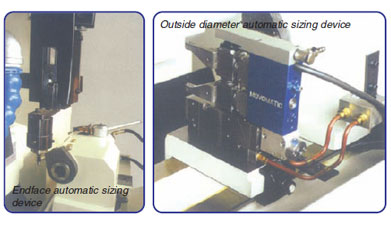

If you are interested in this product please CONTACT US



MODELECGL-270C
Capacity
Swing over table 270mm
Distance between centres 600mm
Max. workpiece weight – centre work 60Kg
– centre work 20Kg
Wheelhead and feed
Grinding wheel dimension OD × Width × ID 405 × 32-50 × 152.4mm
Wheel speed 1650rpm
Max. wheel circumferential speed 2000mm/min
Traverse length 250mm
Swivel angle + / – 15° + / – 15°
Manual in feed (Ø) 0.001, 0.01, 0.1mm
Table
Traverse length 700mm
Swivel angle – towards operator
– towards operator
Manual infeed (Ø) 0.001, 0.01, 0.1mm
Workhead
Workhead type Dead / Live Centre
Work spindle speed 30-360mm
Taper no. MT No.4 MT No.4
Diameter of through hole 25mm
Tailstock
Taper no. MT No.4
Spindle stroke 32mm
Motor
Wheelhead infeed servo motor 1.5KW
Table infeed servo motor 1.5KW
Wheelhead spindle 3.75KW (5HP)
Workhead spindle 0.4KW (½HP)
Hydraulic pump 0.75KW (1HP)
Wheelhead lubrication pump 0.1KW (1⁄8HP)
Coolant pump 0.2KW (¼HP)
Tank capacity
Wheelhead lubrication tank 30L
Hydraulic tank 60L
Coolant tank 80L
Floor space (Length × Width × Height) 2700×1520×1650mm
Net weight (approximate) 2200Kg


Product Description

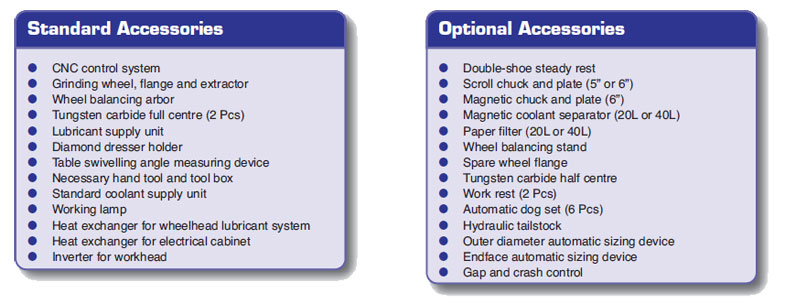

page-119-access
