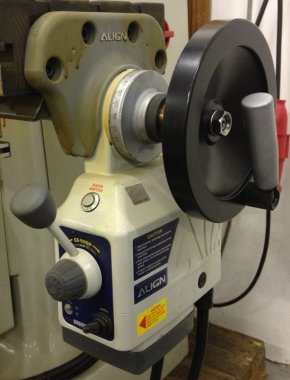

Align Power feed for sale – Milling Machines – CE-500 P (Z) – Z axis (Knee – table up and down)

Name: Align Power feed for sale - Milling Machines - CE-500 P (Z) - Z axis (Knee - table up and down) - Gate Machinery
SKU: CE-500 PZ
Price: 515.00 GBP
Availability: InStock

You Save £57.00!

Original price was: £572.00.Current price is: £515.00.

The ALIGN CE-500 P X is a power feed unit designed to automate the Vertical table, or Z-axis, movement of a milling machine’s table. It features a robust aluminum housing, a 110V motor with a reset switch, and an automatic cut-out for safety. This power feed unit is compatible with most turret milling machines, providing a speed range of 4-160 RPM and a maximum torque of 780 in-lb.

Key Features and Specifications

Function: Power longitudinal feed (X-axis) for milling machine tables.
Motor: 110V, 50/60Hz carbon brush motor with a reset switch and pilot light.
Housing: Durable, enamelled die-cast aluminium construction.
Safety: Automatic cut-out mechanism at the end of the set point.
Performance:
- Speed Range: 4-160 RPM.
- Max Torque: 780 in-lb.
Compatibility: Suitable for most turret milling machines, including models from brands like XYZ, Excel, Chester, and Warco. Some modifications may be needed for Bridgeport and certain European mills

2 in stock

Download Brochure

Description

Align Power feed for sale – Milling Machines – CE-500 P (Z) – Z axis (Knee – table up and down)

Align CE-500P Series Power Feeds

CE-500PZ power feeds
For Z axis (Knee)
4-160 RPM
Bevel drive gear rate 4.8:1
Max Torque 780 in-lb
Voltage – 110V 50/60Hz
Rating 1 Amp

Ideal for fitting to Turret Milling Machines. Will fit all Gate Turret Mills (PBM-VS400 excepted) and most; XYZ, Excel, Chester, Ajax, Huvema, Warco, Europa, Chevalier, Lilian, Microcut etc Turret Milling Machines. A slight modification may be required on some Bridgeport and European Turret Mills
