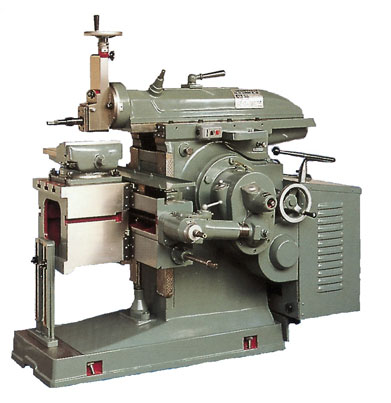

SH-915S







If you are interested in this product please CONTACT US

  • Shipping weight of this product:
  • Manufactured by:



MODELSH-915S
Max stroke of ram 915mm
Number of strokes 8
Range of stroke per min. 5-85
Max. planing width (standard) 838mm
Max. distance, table to ram 500mm
Vertical travel of tool head 279mm
Number of table feeds 11
Range of table feeds 0.15-1.85
Dimensions of table (L×W×H) 745 × 470 × 380mm
Base area (L×W) 1750 × 710mm
Jaw of swivel vice 406mm
Motor 3HP(2.2KW)
Net weight (approx.) 2500Kg
Gross weight (approx.) 2800Kg
Shipping measurement 2320×1532×1750mm


Product Description

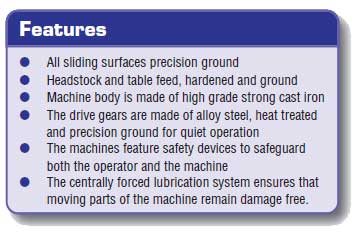

page-80-stdfeatures
